EXAIR’s compressed air operated Line Vac™ connects to standard hose to create a powerful in-line conveyor material handling system. Unlike belt or screw type conveyor equipment, Line Vac conveyors are ideal for moving large volumes of material over long distances without clogging or jamming. The material flow rate is easily controlled with a pressure regulator. An optional bracket permits easy mounting. No moving parts or electricity assures maintenance free operation. Sizes will fit from 3/8″ to 5″ inside diameter hose. Available in aluminium, type 303 stainless steel or type 316 stainless steel.
Advantages
- Compact
- Quiet
- No moving parts
- Fits standard hose or tube
- Aluminium or stainless steel
- High throughput capacity
Materials
Aluminium is the economical choice for general purpose conveying. Maximum temperature: 250°F (121°C).
Our standard stainless steel models (Type 303) offer good corrosion resistance and are ideal for food service, abrasive or corrosive applications. Maximum temperature: 800°F (426°C).
For critical applications including certain foods and pharmaceutical products, Type 316 stainless steel models provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
Line Vac Models
Line Vacs are available individually and in kits.
Line Vac Kits include a Line Vac, mounting bracket, filter separator and pressure regulator (with coupler).
Line Vacs and Line Vac Kits are available in heavy duty, light duty, and standard duty models for use with hoses or NPT threaded pipe.
Accessories
Clear PVC Hose – 3/8″ (10mm), 1/2″ (13mm), 3/4″ (19mm), 1″ (25mm), 1-1/4″ (32mm), 1-1/2″ (38mm), 2″ (51mm), 2-1/2″ (64mm) and 3″ (76mm) I.D. PVC hose in lengths up to 50′ (15.2m). Ideal for conveying applications, the hose is very flexible and has a smooth internal bore that eliminates material build up. The reinforced, heavy wall of this clear hose provides visual confirmation that the material is moving when air is supplied to the Line Vac. Temperature rating is -4 to 150°F (-20 to 66°C).
Mounting Brackets – are available for Line Vacs from 3/8″ (10mm) through 5″ (127mm).
Drum Covers – EXAIR’s fine mesh non-woven Drum Cover is built to fit over the top of 55 or 30 gallon drums. It is suitable for Line Vac conveyance hoses from 3/4″ through 3.4″ outside diameters and comes complete with hose clamps and a durable spring buckle strap for quick and easy installation.
VIEW THE DATASHEET HERE

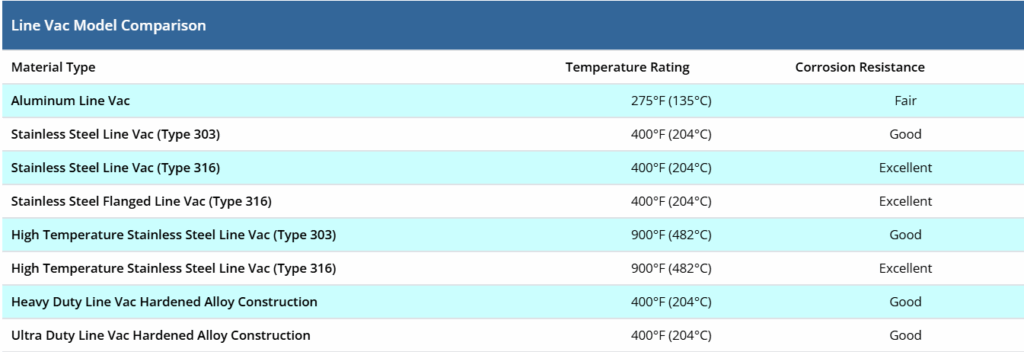

Model Comparison
