EXAIR’s Air Wipes™ (ring blades) are like an air knife that is bent around in a circle. The target product then passes through the circle and experiences air blow-off force from all directions.
In addition to the blades themselves, ANP also offers a variety of shims that can be used to increase the gap in the ring blade and thus increase air flow and impact.
APPLICATIONS
- Drying after washing, cleaning, plating or coating
- Blowoff dust and contaminants
- Cool hot extruded shapes
- Uniformly wipe surfaces
- Dry extruded profiles, rod and medical tubing
- Eliminate solution carryover – no cross contamination
- Blow excess water from automotive door gaskets
- Remove excess coatings, water and oil
- Dry tube, hose, wire, fiber optics
- Minimize solution loss due to drag-out
- Clean paint gun tips
- Dry screen printed or ink jetted surfaces
- Clean strips and ribbon
Advantages
- Quiet
- Low air consumption
- Uniform 360° airflow
- Uniform airflow across the entire diameter
- Stainless steel hardware resists corrosion
- Aluminum models for temperatures up to 400°F (204°C) Stainless steel models for temperatures up to 800°F (427°C)
- No electricity, no moving parts
- Non-contact – no wiper blade
- Split design – compact, rugged, easy to install
- Lightweight, low profile
- Tapped holes for mounting
- Variable force and flow
- Meets OSHA maximum dead end pressure and noise requirements
MODELS

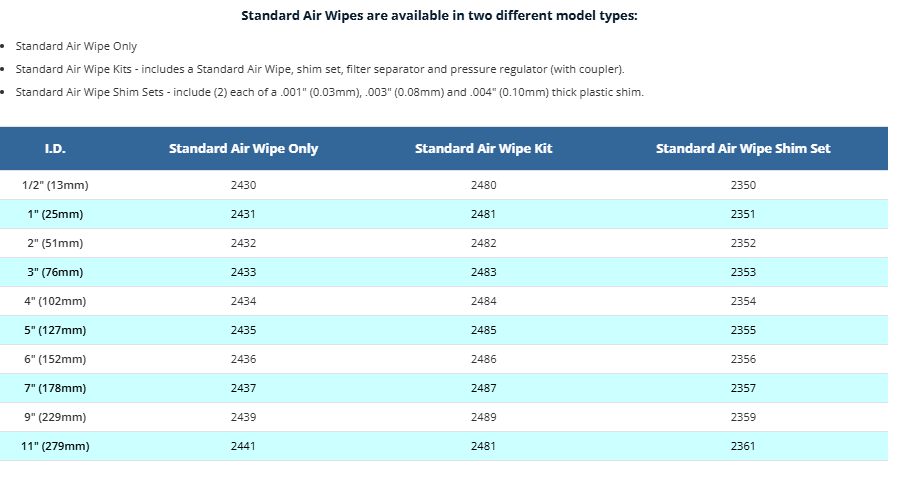

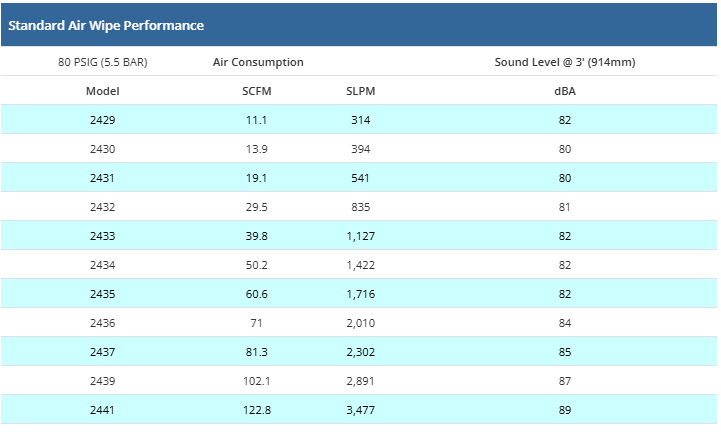

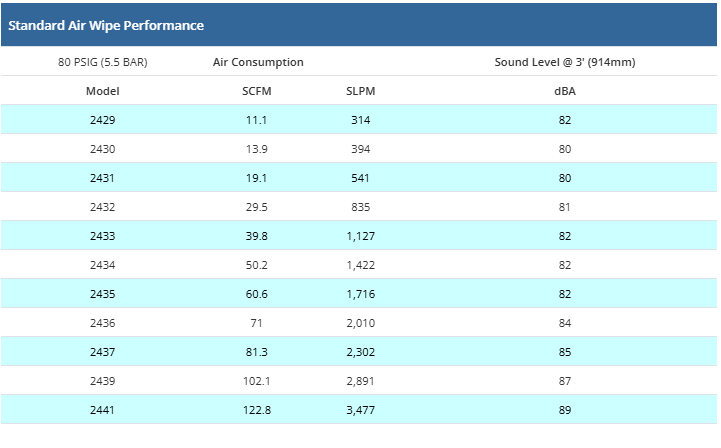

EXAIR’s Standard Air Wipe™ is a good choice when the added durability of stainless steel screws, shims and hose are not required. EXAIR’s Standard Air Wipe provides a uniform 360° airstream that is ideal for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose and more. The split design offers easy clamping around the surface of the material moving through it, eliminating the need for threading. Kits include the Standard Air Wipe, shim set, filter separator and pressure regulator (with coupler).

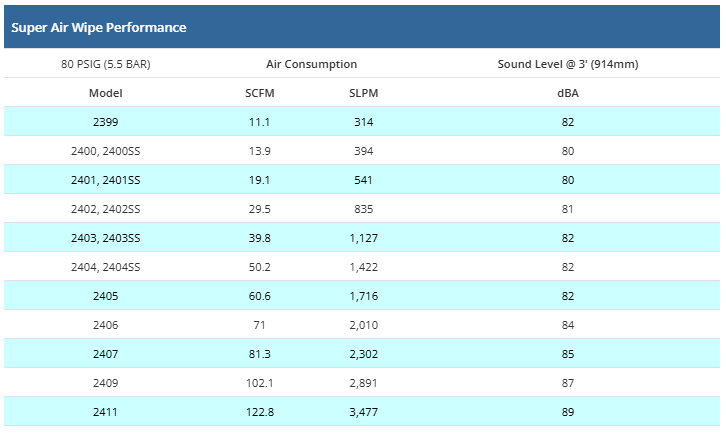

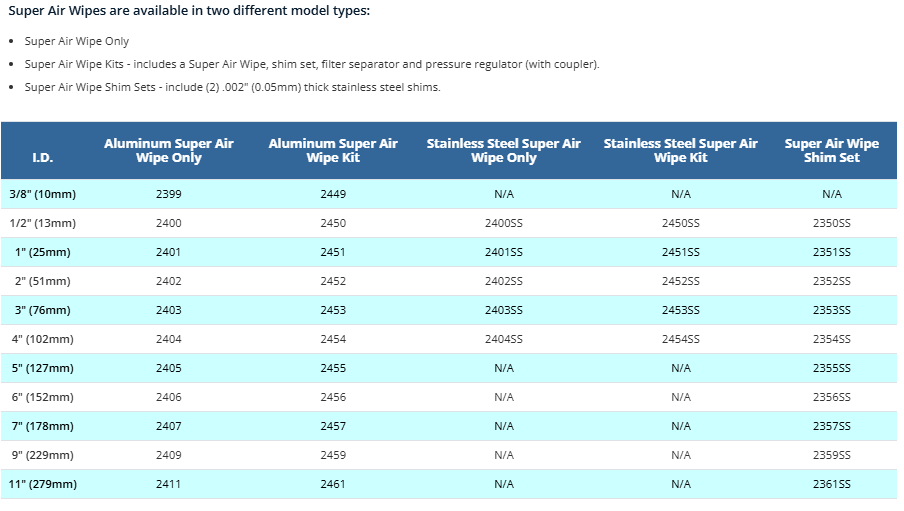

EXAIR’s Super Air Wipe™, with stainless steel hardware and shims, provides a uniform 360° airstream that is ideal for blowoff, drying, cleaning and cooling of pipe, cable, extruded shapes, hose, wire and more. Models up to 4″ diameter include stainless steel braided hose which feeds both halves from one compressed air inlet. The split design offers easy clamping around the surface of the material moving through it, eliminating the need for threading. Available from stock in diameters from 3/8″ to 11″ and made from aluminum or type 303 stainless steel. Custom sizes and materials are available.
