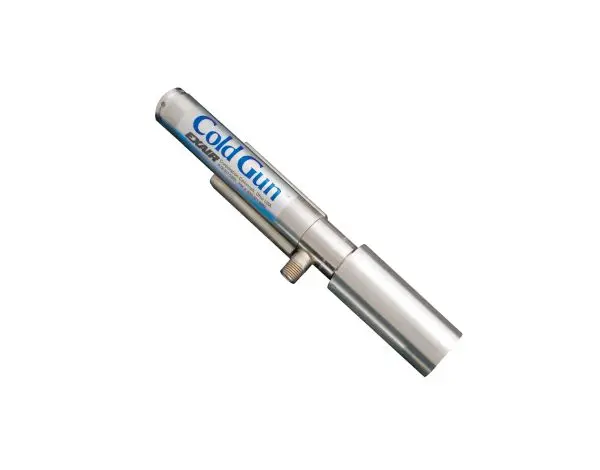

Cold Guns produce a stream of clean, cold air at 50°F (28°C) below supply air temperature. Operation is quiet and there are no moving parts to wear out. It will remove heat to prolong tool life and increase productivity on machining operations when liquid coolant cannot be used. Because it uses vortex cooling, the Cold Gun is also an alternative to expensive mist systems by eliminating the costs associated with the purchase and disposal of cutting fluids as well as worker related health problems from breathing airborne coolants or slipping on wet floors. Available in standard or high power versions.
Applications
- Tool sharpening
- Drill and cutter grinding
- Routing
- Plunge and form grinding
- Milling
- Surface grinding
- Drilling
- Tire grinding
- Band sawing
- Plastic machining
- Laser cutting
- Chill rolls
- Setting hot melt adhesives
Advantages
- Improves production rates
- Prevents burning
- Extends tool life – reduces breakage
- Improves tolerance control
- Prevents smearing of metal or plastics
- Finished part is dry
- Eliminates wheel loading
- Low cost
- Compact, lightweight, portable
- No moving parts – maintenance free
- Quiet
- No coolant cost
- No electricity
Cold Gun Systems
Four systems are available:
Model 5215 Cold Gun System (one cold outlet) includes Cold Gun, Single Point Hose Kit, 3/8″ (10mm) Cone Nozzle, 1-1/4″ (32mm) Fan Nozzle, Manual Drain Filter Separator.
Model 5315 Cold Gun System (two cold outlets) includes Cold Gun, Dual Point Hose Kit, (2) 1/4″ (6mm) Cone Nozzles, (2) 1″ (25mm) Fan Nozzles, Manual Drain Filter Separator.
Model 5230 High Power Cold Gun System (one cold outlet) includes High Power Cold Gun, Single Point Hose Kit, 3/8″ (10mm) Cone Nozzle, 1-1/4″ (32mm) Fan Nozzle, Automatic Drain Filter Separator.
Model 5330 High Power Cold Gun System (two cold outlets) includes High Power Cold Gun, Dual Point Hose Kit, (2) 1/4″ (6mm) Cone Nozzles, (2) 1″ (25mm) Fan Nozzles, Automatic Drain Filter Separator.
